Name: AC Infinity Air Filtration Kit 8", Inline Fan with Speed Controller, Carbon Filter & Ducting Combo
SKU: 311865

Description

Air Filtration Kit: This comprehensive package includes everything needed for cooling, ventilation, and odor control in a grow space. The CLOUDLINE inline fan with speed controller delivers silent, efficient performance. The kit also features a carbon filter supplemented with a prefilter cloth, using 1200 IAV activated charcoal for optimal odor blocking. The four-layer flexible ducting connects the inline fan and filter to a grow tent for effective airflow direction. The kit's primary specifications are an 8” Duct Size, a Fan Airflow of 724 CFM, a Noise rating of 42 dBA, Carbon Thickness of 38mm, Ducting Length of 25ft.

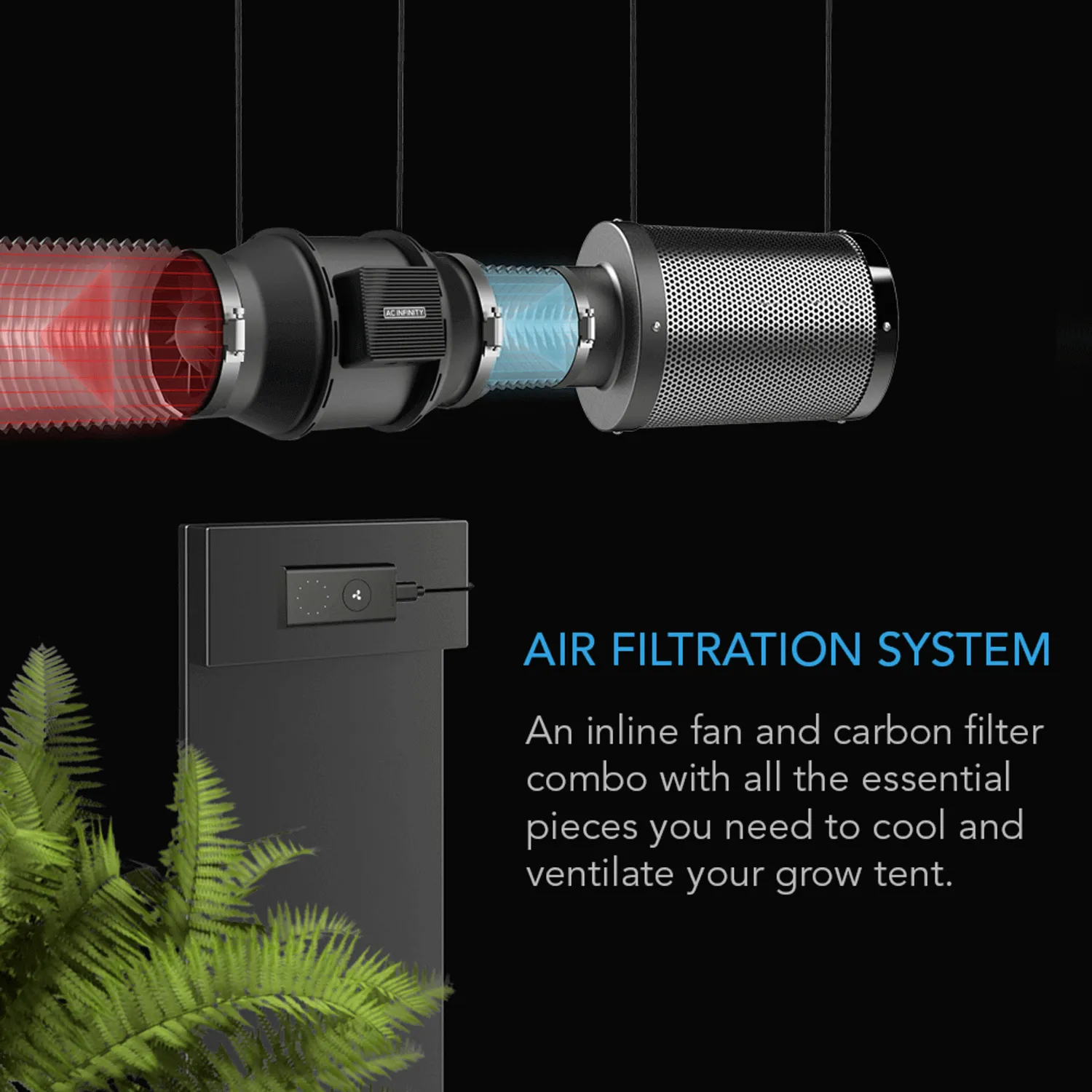

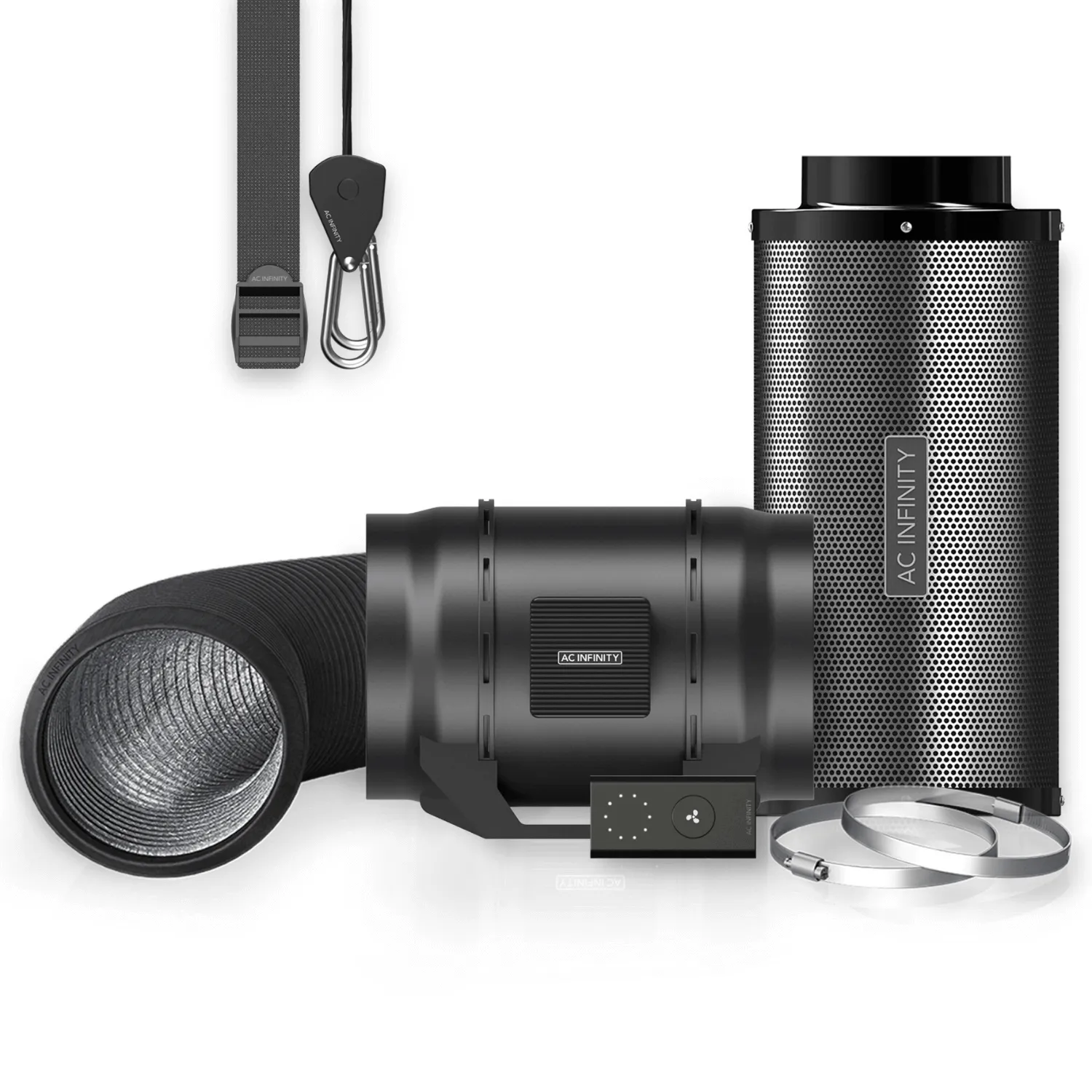

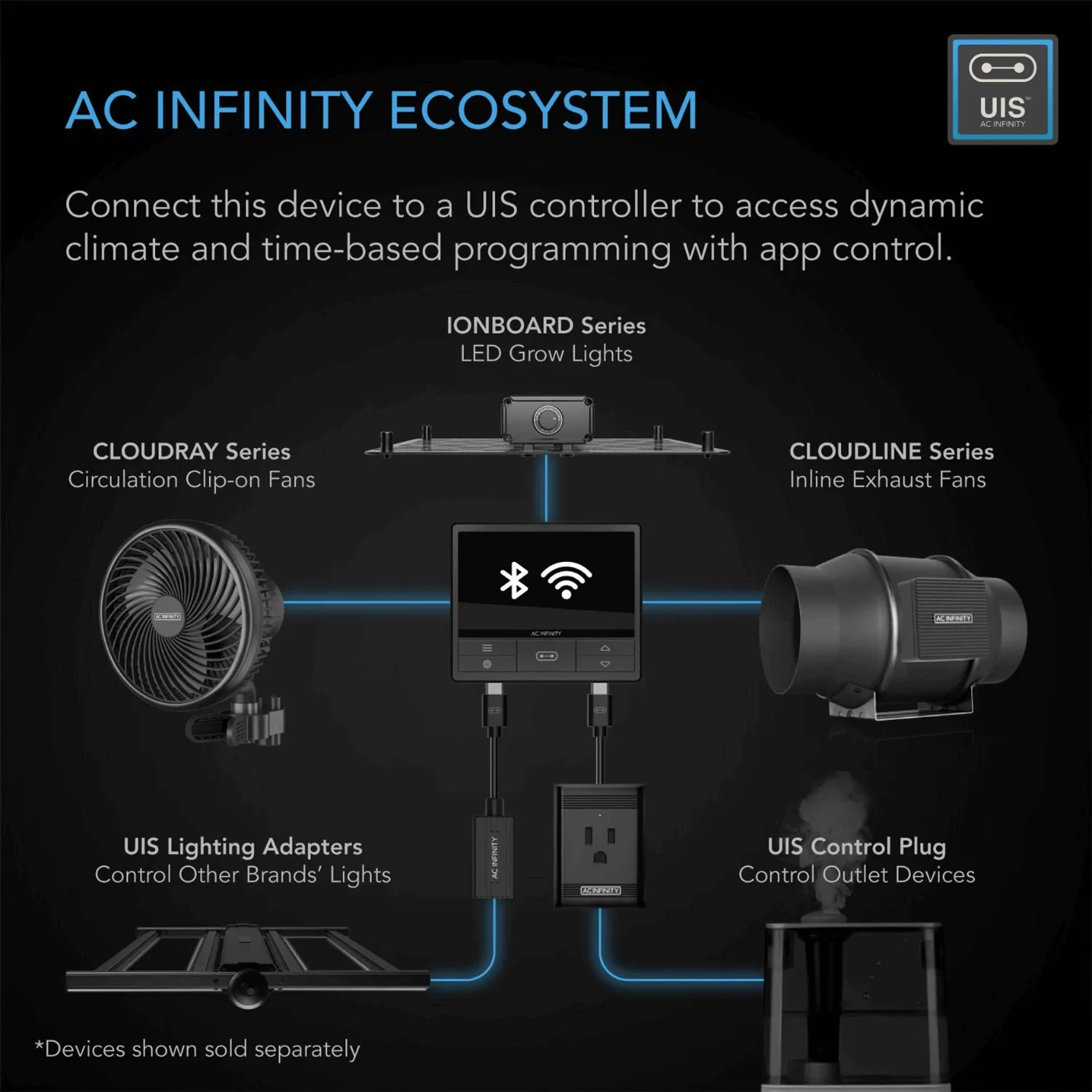

Product Description: This grow tent air filtration system includes all the necessary inline components for ventilating your grow space. By bundling these essential pieces, the kit helps speed up your grow build initiation and eliminates the guesswork of individual purchases. The inline fan kit features a CLOUDLINE Series fan with a 10-speed controller, delivering powerful yet silent performance. This fan is paired with a carbon filter that utilizes Australian virgin charcoal for efficient odor control. These components are connected via a four-layer flexible ducting, directing airflow effectively. The package also includes duct clamps, prefilter cloth, rope clip hangers, and hanging straps for complete installation. This product is a part of the UIS™ platform of grow devices and smart controllers, all designed for seamless integration to create an ideal environment.

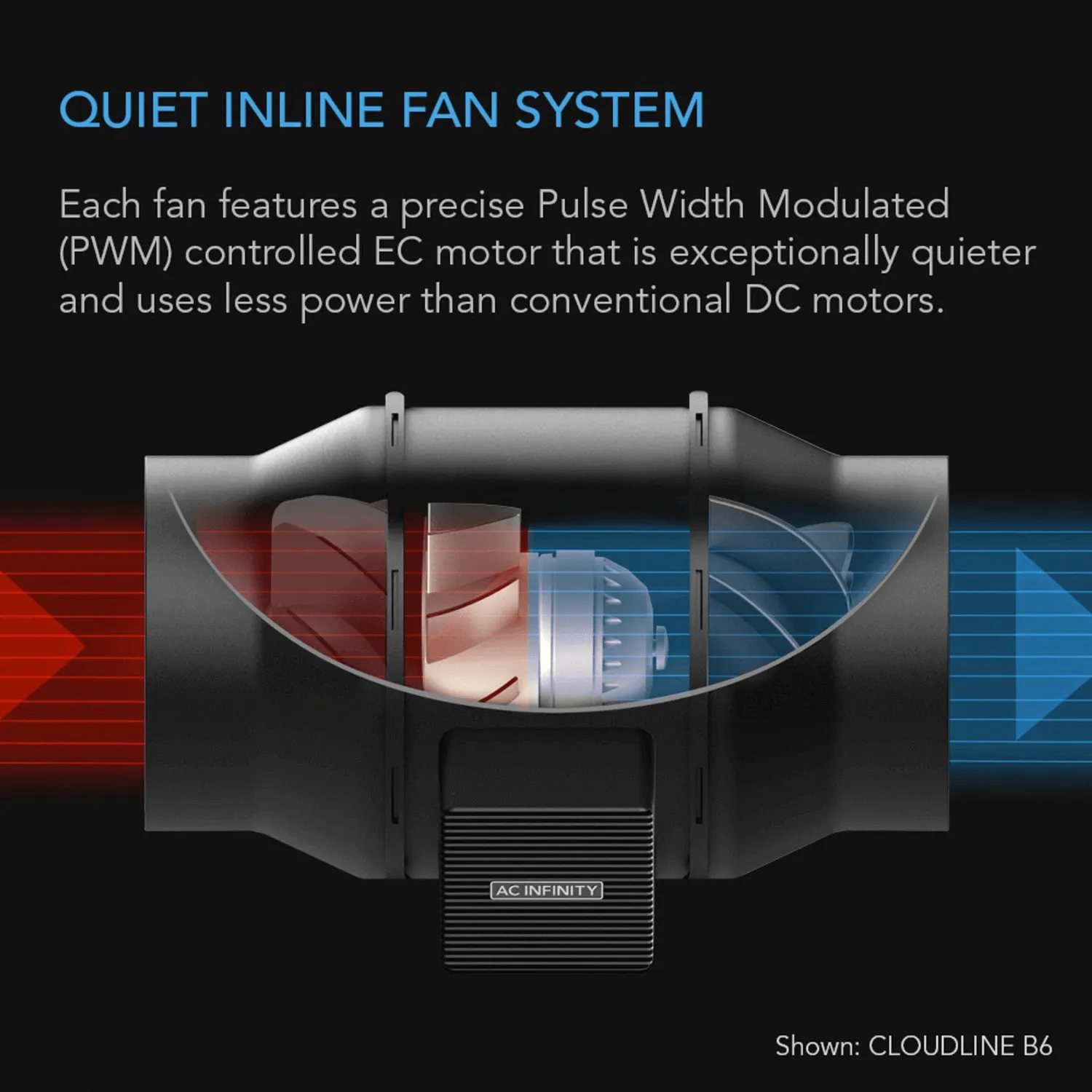

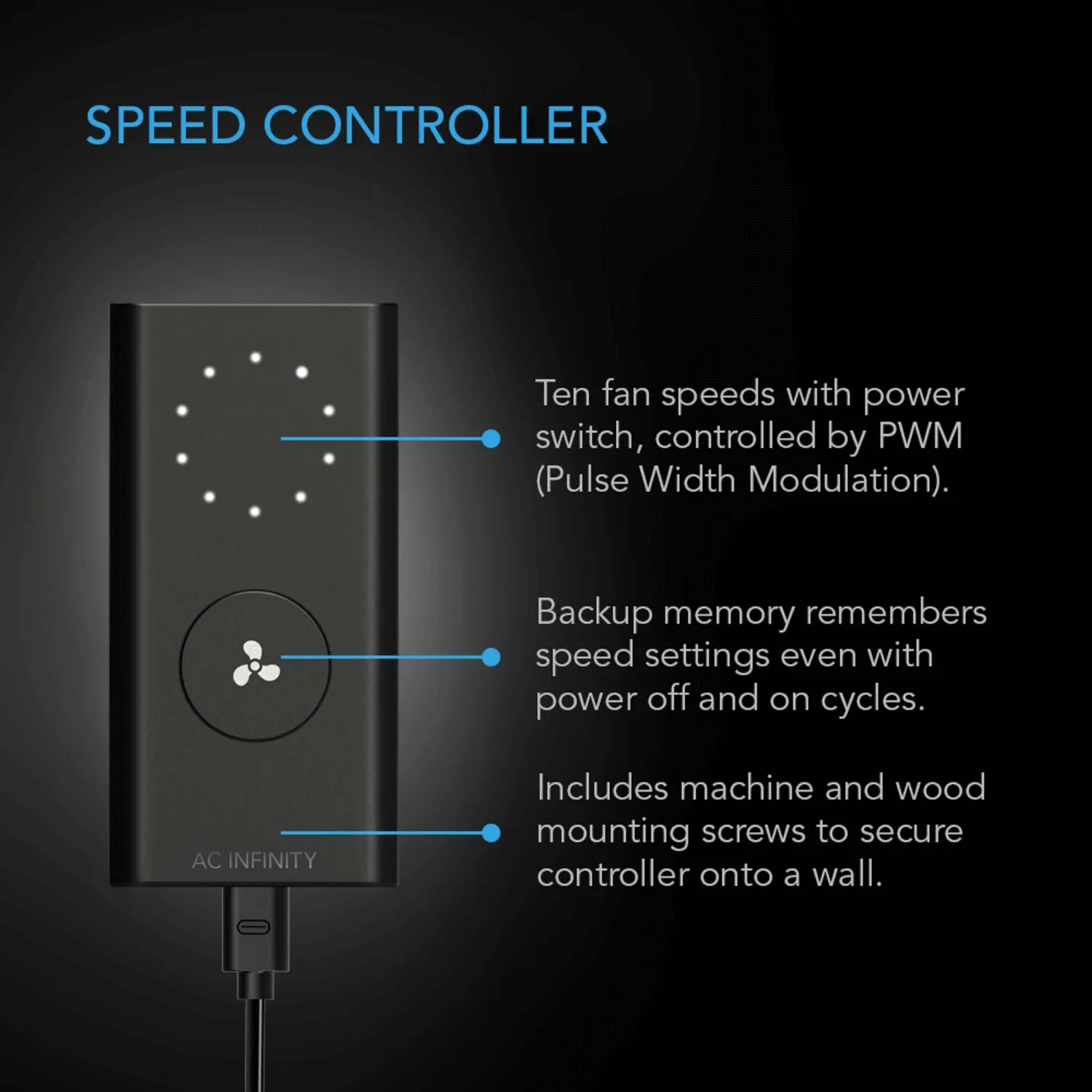

Inline Fan: Headlining the grow tent ventilation kit is the CLOUDLINE Series inline duct fan, featuring a 10-speed fan controller. The fan achieves high-performance airflow in restrictive conditions thanks to its mixed-flow design, stator blades, and dual hydrodynamic wind circles. The motor box, encompassing the fan’s impeller and blades, is detachable for easy maintenance. The fan’s frame is designed with a plastic mounting base to reduce noise from fan vibrations and can be mounted in any direction. This inline fan boasts a 67,000-hour lifespan, backed by an IP-44 rating for dust and splash resistance.

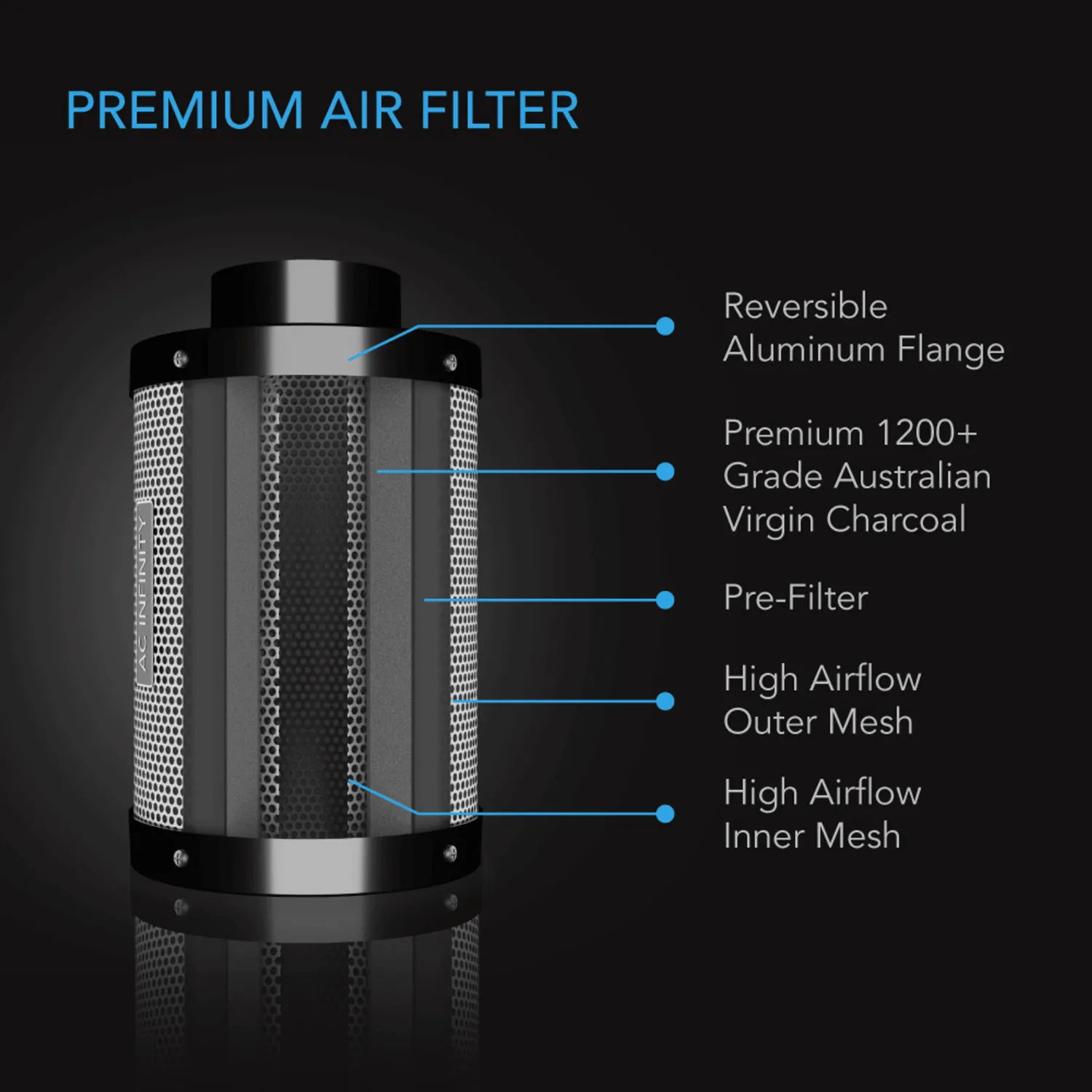

Carbon Filter: This kit features a carbon filter paired with the CLOUDLINE inline fan for effective odor control within a grow tent. The filter consists of a 38mm thick carbon bed of premium Australian activated charcoal which has a 1200 IAV rating and RC412 microporosity. This allows the filter to absorb a massive volume of odor molecules, thereby enabling it to last 33% longer than conventional inline filters. The usage of the included prefilter, along with reversible flanges to flip the carbon bed, further extends the filter's lifespan. Its robust build includes aluminium flanges and a galvanized steel mesh for 100% air pass-through.

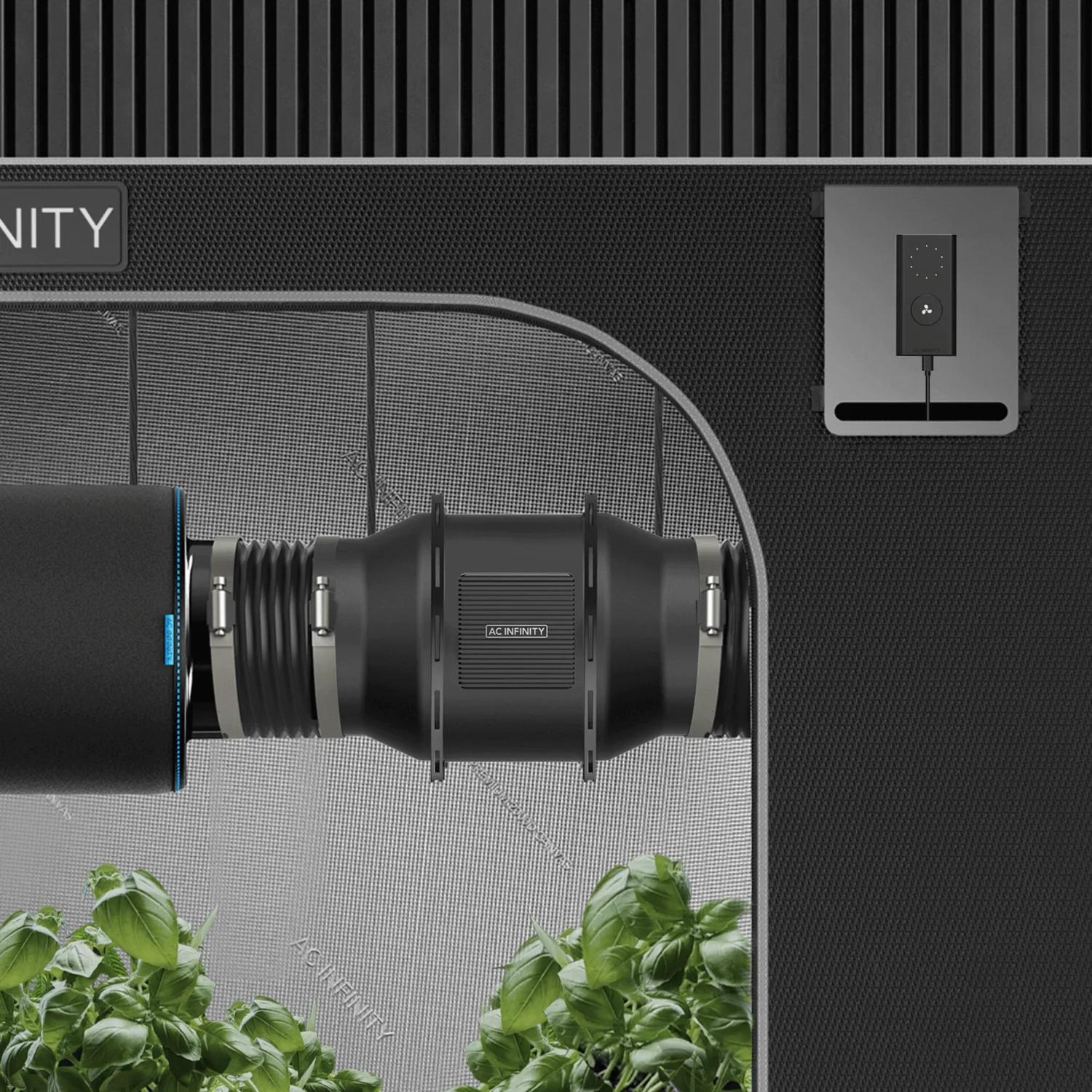

Ducting: This flexible ducting facilitates an effective connection between the inline fan, carbon filter, and your grow tent to direct stale and odorous air away. Each included set has a four-layer protective design that resists tears and leaks, reinforced by internal steel wires to maintain its shape. The outer layers, made of dual PVC thermoplastic, safeguard the inner layers from cuts and tears, and prevent any air leakage. These inner layers, constructed from flame-resistant aluminum, protect against wear and tear due to warmer airflow. The 25 feet length of the ducting allows you flexibility in customizing your ductwork length to fit your application.

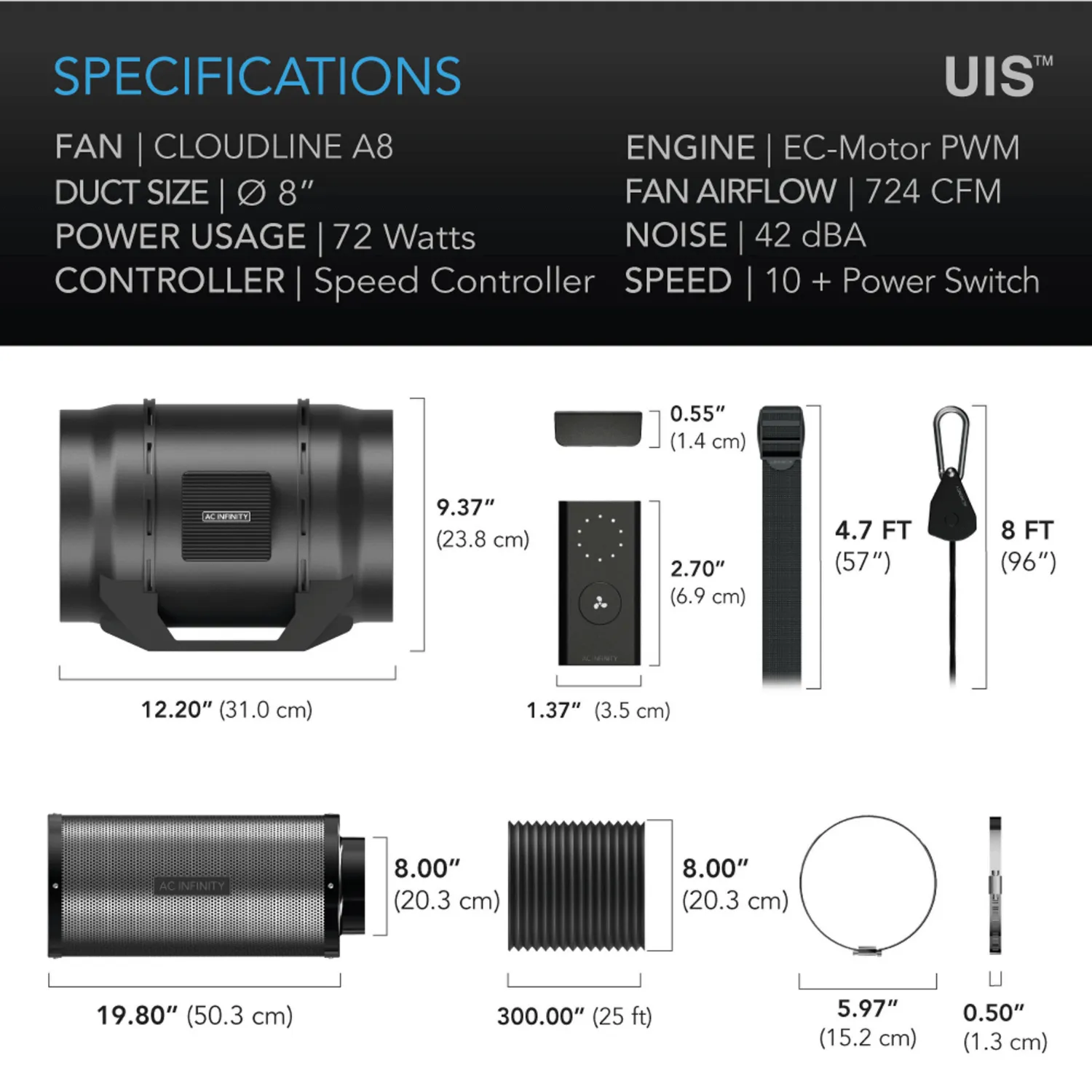

Specifications

Manufacturer: AC Infinity Inc.

Product Name: Air Filtration Kit 8"

Product Model: AC-FKS8

UPC Code: 819137022072

Product and Mounting Dimensions - Fan Unit

Duct Size: 8"

Total Dimensions: 12.20 x 10 x 9.37 inches

Mounting Hole-To-Hole Distance: 3.54 x 1.96 inches

Screw Hole Size: Ø 0.217 inches

Cord Length to Controller: 72 inches (6 feet)

Cord Length to Plug: 72 inches (6 feet)

Product and Mounting Dimensions - Controller

Total Dimensions: 2.70 x 1.37 x 0.55 inches

Product Performance and Technical Specs - Fan Unit

Total Airflow (Fan Only): 724 CFM

Total Noise: 42 dBA

Static Pressure: 746 Pa

Voltage: 100-240V AC

Frequency: 50/60Hz

Max Power Draw: 190 W

Average Power Usage: 72 W

Current: 2.80 A

Power Connector Type: US Plug (NEMA 1-15 Type-A)

Operating Humidity: 35 to 85% RH

Operating Temperature: 32 to 140°F

Ingress Protection: IP 44

Fan Bearings: Dual Ball

Mounting Positions: Horizontal or Vertical

L10 Life Expectancy: 67,000 Hours

Product and Mounting Dimensions - Carbon Filter

Duct Opening Size: 8"

Total Dimensions: 19.8 x 10.94 inches

Flange Length: 3.39 inches

Product Performance and Technical Specs - Carbon Filter

Flange Material: Aluminum

Flange Design: Reversible

Mesh Material: Galvanized Steel

Carbon Type: Australian Virgin RC412

Carbon Grade: 1200 IAV

Carbon Thickness: 38mm

Maximum Airflow: 770 CFM

Product Dimensions - Ducting

Ducting Size: 8 inches

Length: 300 inches (25 ft)

Product Performance and Technical Specs - Ducting

Outer Layer: PVC Thermoplastic

Inner Material: Aluminum Foil

Internal Structure: Spiral Steel-Wire

Data Sheet
